Efficiently Integrating the Straightening of Gear Shafts in a Production Line

TRILOS, a system for all tooth angles

The TRILOS laser measuring system and its runout measurement software are integrated in the M-AH control. While the shaft is rotating, runout errors are precisely measured in the gear teeth: with high resolution and frequency. The advantage compared to conventional measurement with expensive master gears: the system measures wear-free. A further advantage: the system can be used for all tooth angles of running gears as well as for splines.

part2

The TRILOS laser measuring system is designed for wear-free measurement on any kind of toothing types. A robust design and automatic setup to new tooth geometries are particular features of TRILOS.

Automatic resetting, also with large differences in workpiece lengths

The RIVLEX system is used in M-AH straightening machine for automatic resetting from one batch to the next – also with large differences in workpiece lengths. RIVLEX axially positions and clamps workpiece supports, measuring devices and anvils. Components that are not needed are automatically “parked out”.

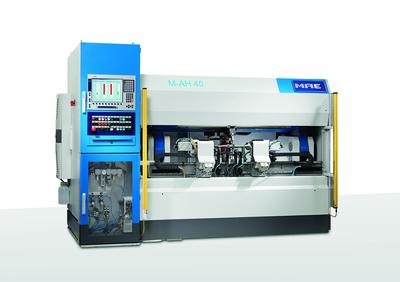

M-AH for manual loading and unloading: this particularly low-cost variant is the perfect solution for small series. The light grid ensures operator safety.
